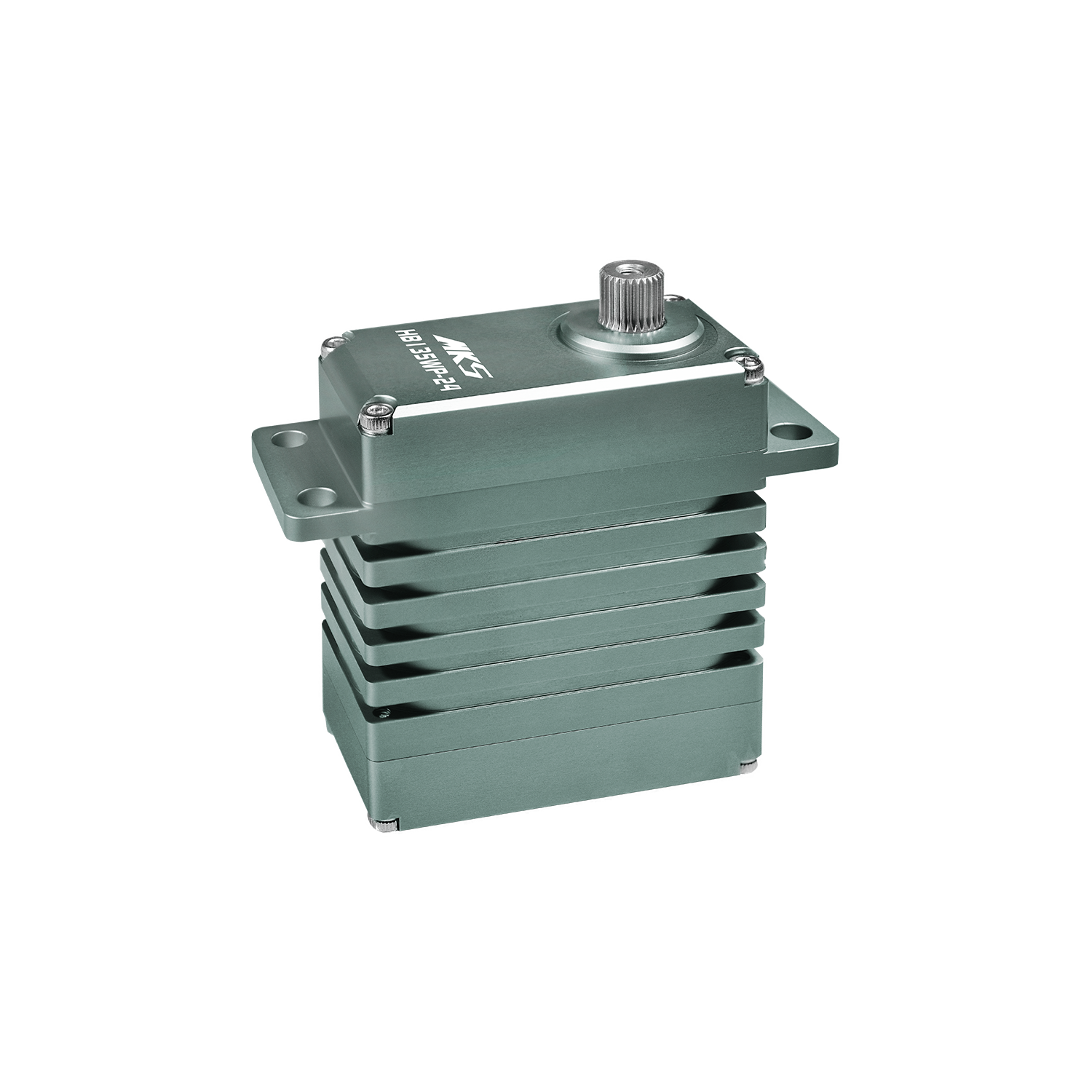

HB135WP-24V

HB135WP-24V
HB135WP-24V
$0

The HB135WP series has the powerful torque and sturdy design of outer housing that can be able against mighty impacts, which is suitable for the slow-speed mechanical structures but require strong output torque, such as landing gear, throttle, and etc.

Servo
Operating voltage 16V ~30VDC Volts
Max. torque 1320 Ncm (1874 oz-in) (135 kg-cm)
Continuous torque 441 Ncm (624 oz-in) (45 kg-cm)
Weight 382 g (13.4oz)
Max. Travel angle 120°±5° (default)
Signal Standard : PWM Custom : DroneCAN (UAVCAN V.0) / RS232 / RS485
Motor Brushless Motor
Gear train Metal Alloy Heat Treatment Gear
Case 6061 AluminumCNC Casing (Anodized)
Position sensor Hall Effect Sensor
